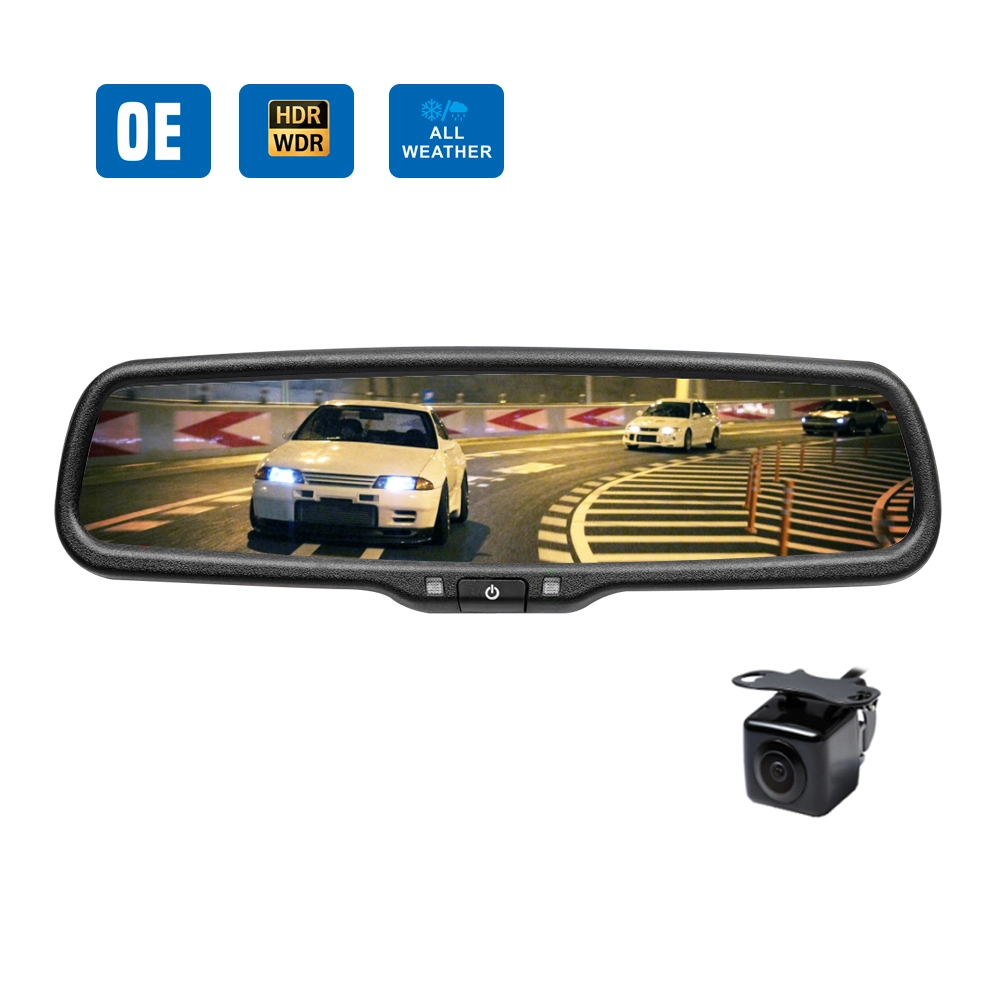

9.66" OE-Style AHD Rear view Mirror with Dual-Mode Display & WDR

Eliminate Rear Blind Spots for Vans & RVs with Seamless OE-Style Integration and Dual-View Switching

Featuring a premium 9.66-inch display, it intelligently switches between full-screen driving rear-view and backup mode. Designed with a fail-safe high-reflectivity physical mirror and interchangeable professional OE brackets, this industrial-grade system ensures unwavering rear visibility and a perfect factory-fit finish in any environment.

Inquiry

Write a Review

Features

Smart Dual-Mode Switching

Driving Mode: Delivers a full-screen, real-time, and high-definition rear view. This effectively resolves the major pain point where standard rearview mirrors are blocked by cargo, passengers, or extended vehicle bodies in RVs and cargo vans.
Reversing Mode: Automatically triggered when shifted into reverse. Accurately capturing ground-level obstacles behind the vehicle to assist in safe and precise parkingFail-Safe Physical Mirror
When the screen is turned off or the system powers down, the display instantly functions as a high-reflectivity traditional optical mirror. This respects standard driving habits while ensuring a reliable backup rear view at all times, even during sudden power loss.Factory-Grade OE Bracket Mount
Supports a wide range of dedicated, interchangeable OE brackets to replace the original mirror structure. It achieves a seamless, secure, and premium integration with the vehicle’s original interior, far upgrading beyond generic, unstable clip-on/rubber strap solutions

WDR (Wide Dynamic Range)

Suppresses blinding glare from high beams at night and prevents "white-out" effects at tunnel exits, maintaining clear and balanced images.

1 (91)

9 (11)

3 (75)

2 (99)

8 (18)

Product Parameters

Mirror
Screen	9.66 inch	Resolution	1280*320
Contrast	800:1	Brightness	500cd/m²
Channel	2 CH	Mode	Driving Mode+ Reversing Mode
Operating voltage	DC12~24V	Stable Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +70℃	Max Power	≤6W
Camera
Resolution	AHD	WDR Support	YES
Format	CVBS/720P	Visible angle	105°
Stable Operating temperature	-20℃ to +65℃	Storage temperature	-30℃ to +70℃

Product Applications

OE AHD Mirror for Multiple Vehicle Types

This product is widely applied in RVs, Vans, logistics trucks, and various medium-to-large passenger vehicles. It effectively eliminates blind spots caused by long vehicle bodies, rear passengers, or stacked cargo. Whether for RV enthusiasts on long journeys or logistics fleets prioritizing efficiency and safety, this mirror provides a superior sense of security through its HD streaming feed and fail-safe physical mirror design.
