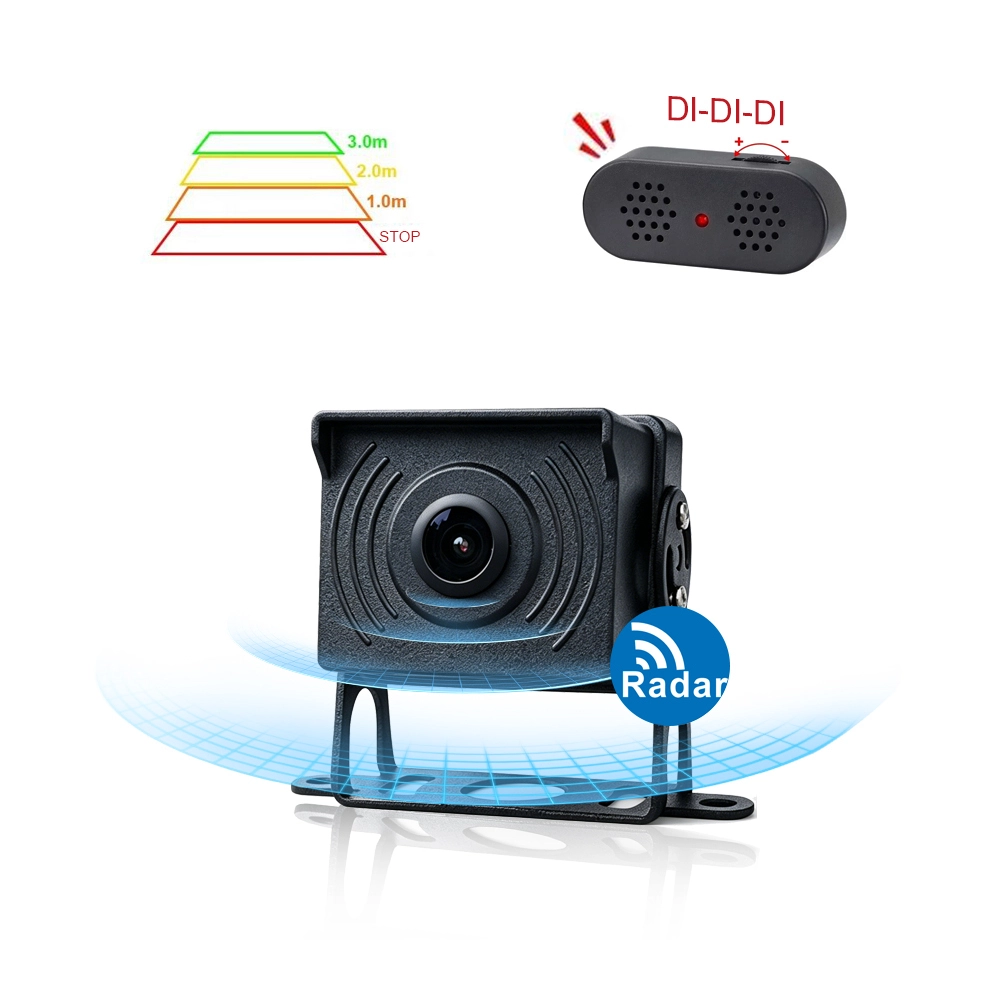

Anti-collision 11GHz Millimeter Wave Radar Integrated AHD Camera for Port Reach Stacker & Mining Dump Truck
This product is an integrated reversing warning system combining 11GHz radar with AHD high-definition video, compatible with various in-vehicle devices that support AHD reception. The radar features a horizontal detection angle of 160° and provides effective warning within 3 meters, fully covering the blind spot behind the vehicle. With resistance to vibration, sound waves, rain, snow, and dust penetration, it operates reliably even under harsh working conditions, making it a dependable solution for commercial vehicle reversing safety protection.
5.0
Model:
PJ-196MWR
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Features
- 160° Ultra-Wide Radar Coverage:
Detects obstacles even before they enter the camera’s view, with precise distance readings up to 3 meters.
- All-Weather Performance:
The radar offers extremely strong penetration capability, remaining unaffected by rain, snow, smoke, or mud that may obscure the camera. Even when the camera lens is covered in mud or dense fog is present, the alarm remains stable and reliable, ensuring round-the-clock protection for reversing safety
- Audible & Visual Warning：
Within 3 meter, the buzzer frequency and volume increase as the obstacle gets closer(Supports custom volume adjustment), and the distance change is clearly shown on the screen.
- AHD Compatibility:
Works seamlessly with DVRs, head units, streaming mirrors, and CarPlay-ready devices—plug-and-play for most vehicles.
- Easy Installation:
It can adjust the installation position and angle according to different vehicle models, allowing for easy installation and significantly saving labor costs and time.
Product Parameters
|
Image Sensor |
1/2.7‘’，1920*1080 |
Resolution |
AHD 1080P |
|
Image Frame Rate |
25fps |
Mounting Height |
70CM-90CM |
|
Detection Range |
3m |
Radar Detection Angle |
160°（H），100°（V） |
|
Image Angle |
110°（H），57°（V） |
Operating Voltage |
DC 6V ~ 36V |
|
Camera Operating Current |
12V @ 142+/-10MA； 24V @ 75+/-10MA |
Max Operating Current |
< 330mA |
|
Max Power |
≤1.9W |
Video Output Impedance |
75Ω |
|
Stable Operating Temperature |
-30°C to +60°C |
Storage Temperature |
-30°C to +70°C |
