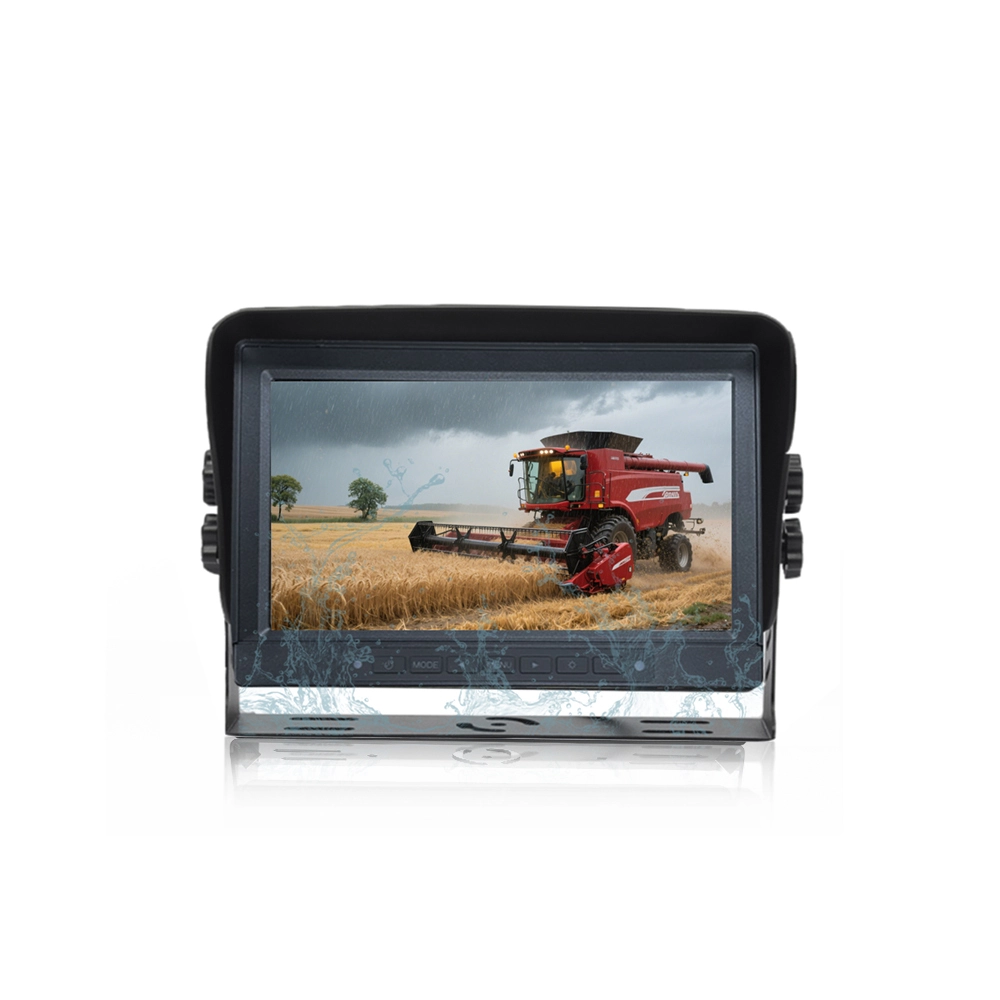

10.1-inch IP69K Waterproof AHD Monitor for Boat|PJAUTO
1080P AHD Waterproof Monitor
PJAUTO's 10.1-inch waterproof in-vehicle display features a large HD screen and a professional waterproof design, providing stable and clear visual support for all types of vehicles. With IP69K-rated waterproof performance, it can effectively resist the invasion of rain, car wash water spray, and road dust, and maintain stable operation even in harsh, damp and dusty environments. The display supports a wide voltage input and is compatible with the vehicle power system. It is easy to install and compatible with mainstream in-vehicle cameras. An optimized display algorithm reduces strong light reflections and image distortion, ensuring clear and visible images in sunlight or at night, providing drivers with reliable all-weather visual assistance, helping to improve driving safety and driving experience.
5.0
Model:
PJ-1010WPH
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Features
- 7 inch lPS Monitor
- With 3 channel VGA/CVBS input
- Inbuilt light sensor for LCD brightness adjusting
- Utilizing VGA interface, supporting resolution up to 1024x600, ensuring clear and deli-cate images
- Equipped with intuitive physical buttons, users can easily navigate menus, adjust brightness, contrast settings, simplifying the usage process.
- DC12-36V wide voltage range, industriallevel PCB design with protection againstover-voltage,under-voltage,reverse polaritystatic and surge, etc.
Product Parameters
|
Model |
PJ-1010WPH |
|
Monitor Screen |
10.1-inch IPS |
|
Resolution |
1024*600 |
|
Video Input |
2-3channels |
|
Video Signal Input |
1080P/720P/VGA/CVBS |
|
Viewing Angle |
85/85/85/85(L/R/U/D) |
|
Video format |
PAL/NTSC |
|
Brightness |
600cd/m² |
|
Contrast |
800:1 |
|
Connector |
4PIN Aviation |
|
Bracket |
U shape (multiple optional) |
|
Stable Working Temperature |
-30℃ to +65℃ |
|
Storage Temperature |
-40℃ to +85℃ |
|
Power Supply |
12-32V |
|
Body line length |
25-30CM |
|
Power cord |
2m to socket (w/ insulation protection) |
Product Applications
Applicable to: ships, agricultural engineering vehicles, excavators, forklifts, ports,ect.
