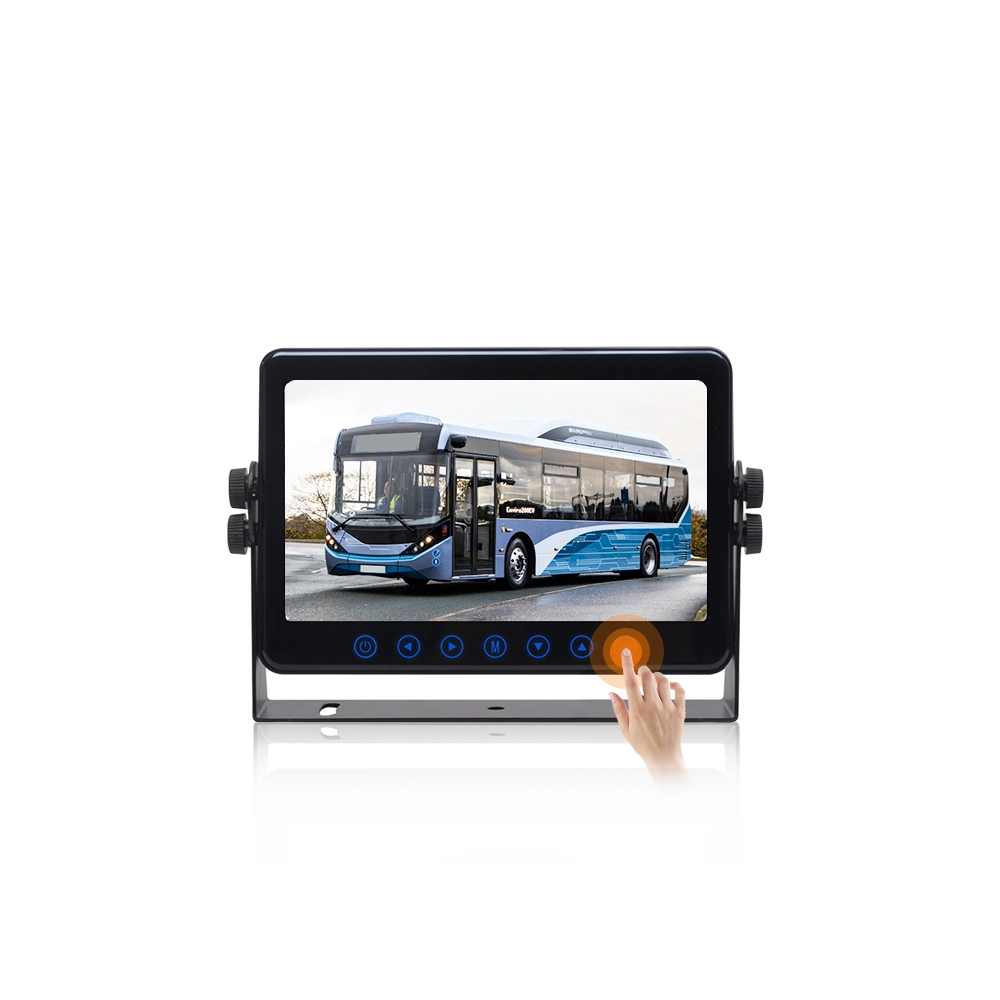

7-Inch HD Touch Button Rear View Monitor Display
Features
- 7 inch HD Digital lPS LCD Monitor
- With 3 channel HD/CVBS input, audio optional
- Auto dim for night mode
- Full galss surface with 2.5D rounded corner
- OSD menu for setting of language,mirror image,parking grid on/off,etc.
- DC12-36V wide voltage range, industriallevel PCB design with protection againstover-voltage,under-voltage,reverse polaritystatic and surge, etc.
Product Parameters
|
Model |
PJ-714HD |
|
Color Monitor Screen |
7-inch IPS |
|
Resolution |
1024*600 |
|
Video Input |
3 channels |
|
Video Signal Input |
1080P/720P/CVBS mixed connection |
|
Audio |
Optional |
|
Screen Mode |
3 channels of single-picture |
|
Video Signal Input |
1080P/720P/CVBS mixed connection |
|
OSD Menu Function |
Respectively Sets The Mirror And Normal lmages Of The Picture, Delays The Time Of Reversing, Triggers Priority, And Supports Multiple Languages |
|
Video Format |
PAL/NTSC |
|
Brightness |
600cd/m² |
|
Contrast |
800:1 |
|
Stable Operating Temperature |
-30℃ to +65℃ |
|
Storage Temperature |
-40℃ to +85℃ |
|
Power Supply |
12-36V |
|
Connector |
4PIN Aviation |
|
Bracket |
U shape (multiple optional) |
|
Body line length |
25-30CM |
|
Power cord |
2m to socket (w/ insulation protection) |
Product Applications
