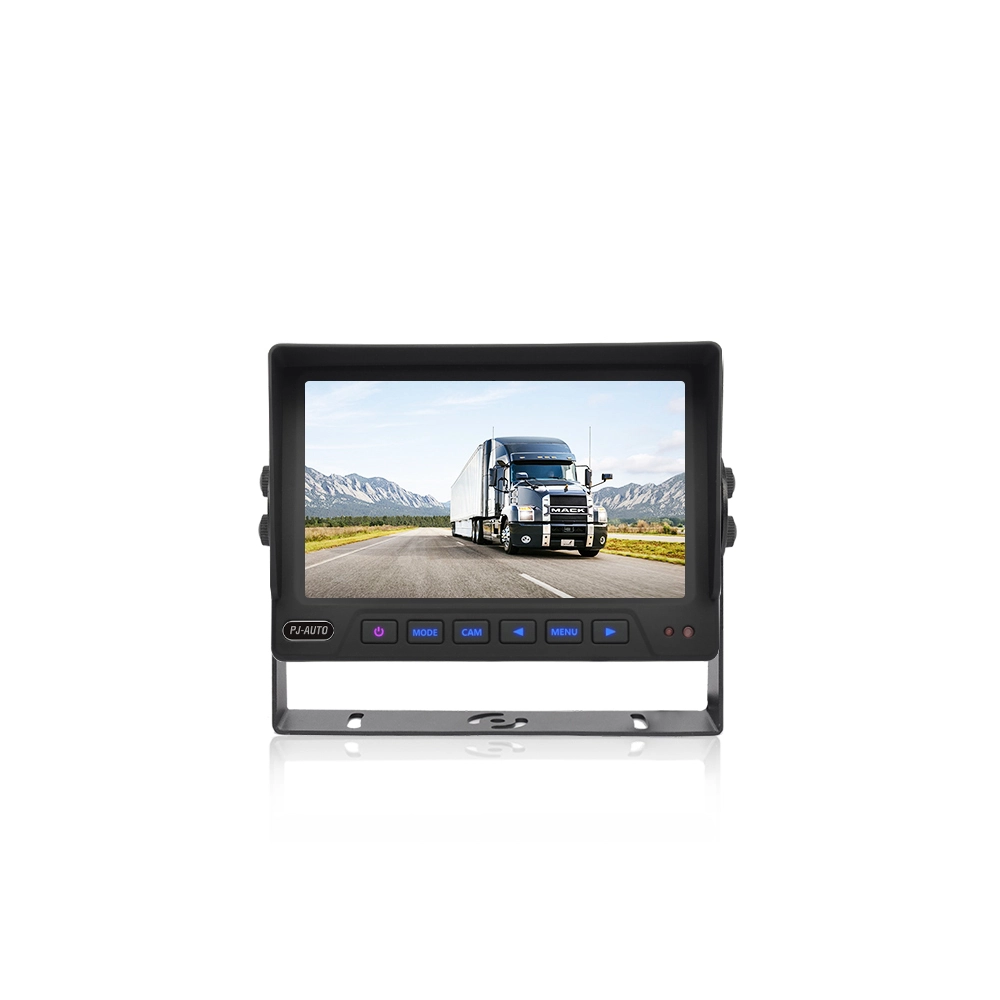

7-Inch AHD 1080P Rear View Monitor
Through this high-definition monitor, drivers can more clearly observe the vehicle's operational status and changes in the surrounding environment, allowing them to better manage vehicle handling. In addition, this monitor features high resolution, supporting 720P, 1080P, and CVBS mixed connections, accommodating various cameras while also supporting three inputs to enhance the driving experience and operational efficiency in different scenarios.
5.0
Model:
PJ-702HD
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Features
- 7 inch HD Digital lPS LCD Monitor
- With 3 channel HD/CVBS input, audio optional
- Inbuilt light sensor for LCD brightness adjusting(Automatically adjusts to ambient light)
- Fast booting up and fast channel switching
- Strongintegrated sunshade on monitor
- DC12-36V wide voltage range, industriallevel PCB design with protection againstover-voltage,under-voltage,reverse polaritystatic and surge, etc.
Product Parameters
|
Model |
PJ-702HD |
|
Color Monitor Screen |
7-inch IPS |
|
Resolution |
1024*600 |
|
Video Input |
3 channels |
|
Audio |
Optional |
|
Screen Mode |
3 channels of single-picture |
|
Video Signal Input |
1080P/720P/CVBS mixed connection |
|
OSD Menu Function |
Respectively Sets The Mirror And Normal lmages Of The Picture, Delays The Time Of Reversing, Triggers Priority, And Supports Multiple Languages |
|
Color Standard |
PAL/NTSC |
|
Brightness (Cd/M2) |
500+ |
|
Contrast Level |
500 :1 |
|
Power Supply |
12-36V |
|
Connector |
4PIN Aviation |
|
Bracket |
U shape (multiple optional) |
|
WorkingTemperature |
-20°C - 70°C |
