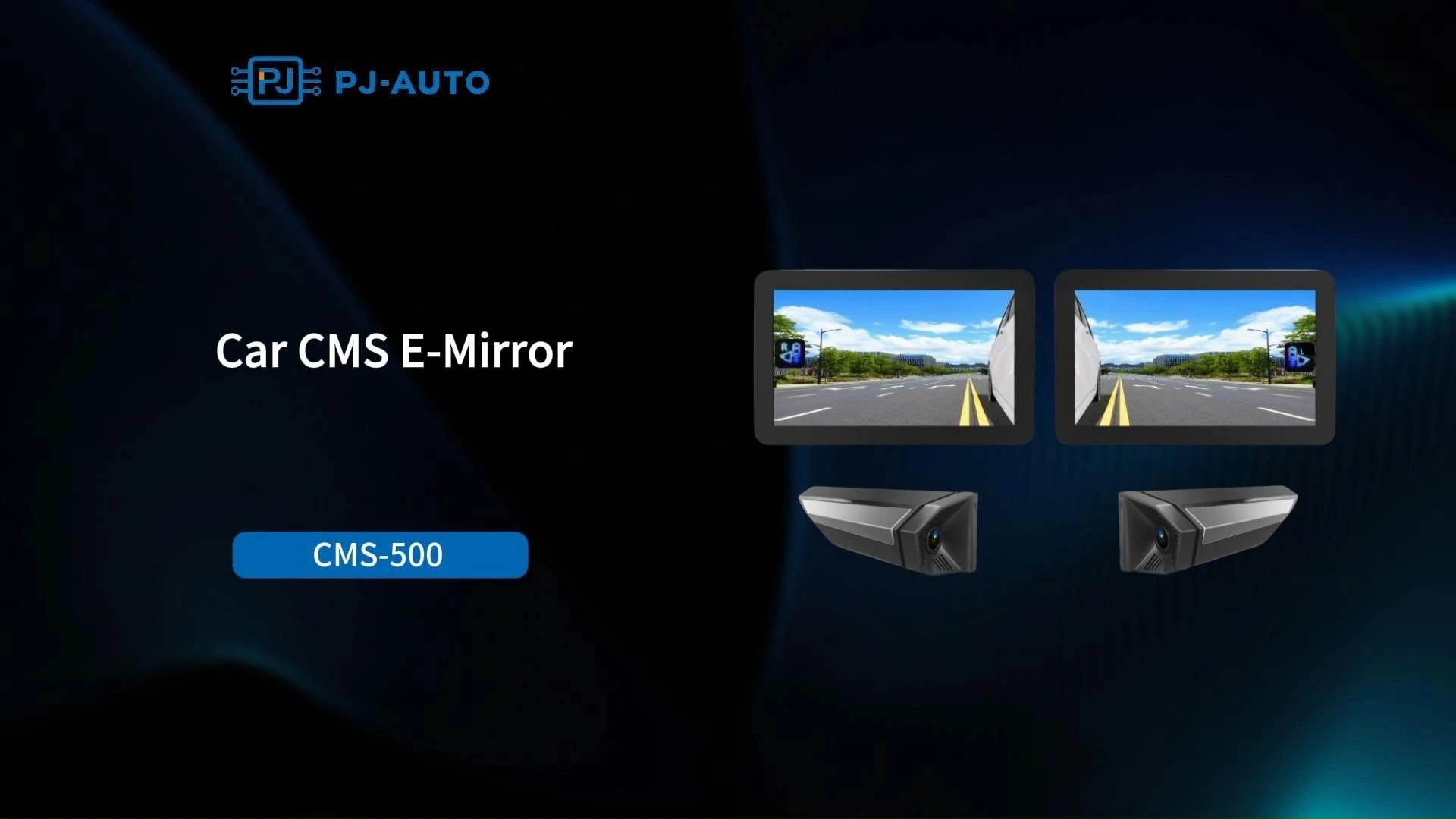

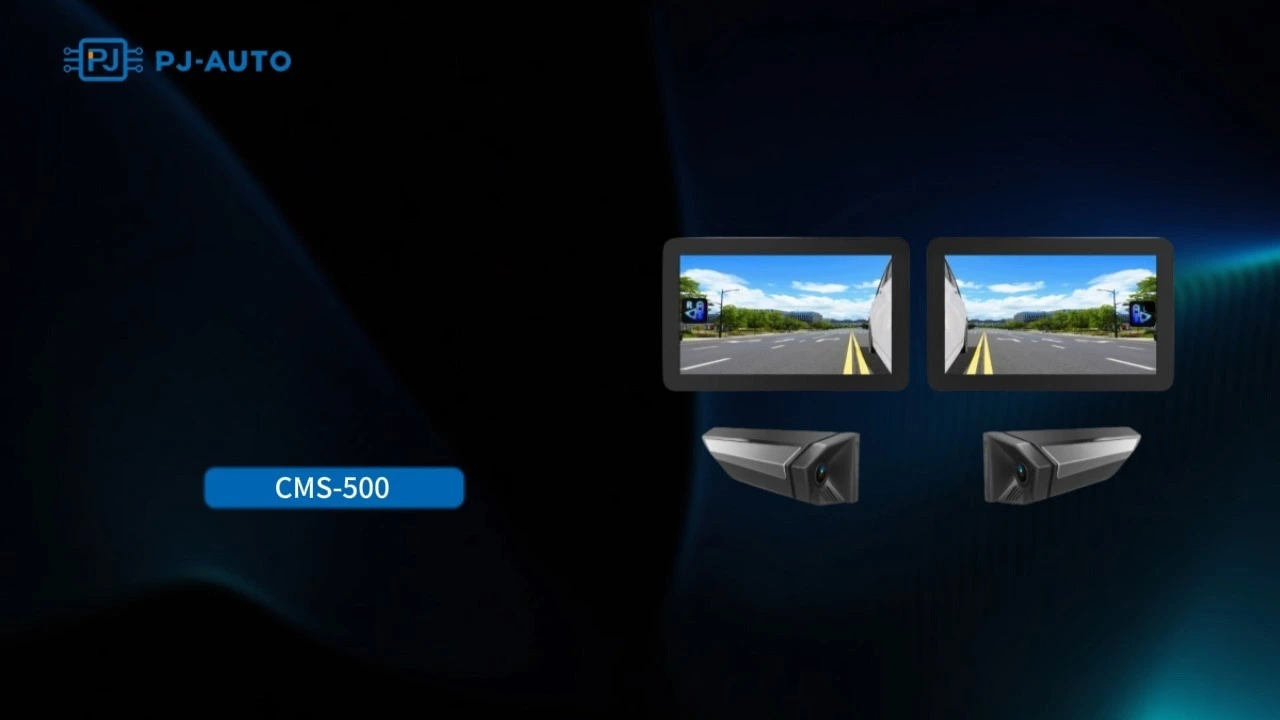

5-inch Car CMS Electronic Mirror With Side Camera
PJATUO CMS-500 is a side camera monitor system (Side CMS, SCMS) that meets the Class III field of view requirements for passenger cars. Its left and right cameras, mounted on the vehicle's fenders, output real-time image data with low latency and high frame rate. Its two monitors, mounted on the left and right A-pillars, display the received camera image data in real time. Its superior imaging performance, superb HD display quality, and precise blind spot detection (BSD) algorithms ensure a clear view of the rear view mirror and potential hazards in all weather conditions, providing the driver with a robust safety guarantee.
5.0
Model:
CMS-500
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Features
- 5-inch high-brightness display, adaptive brightness.
- BSD E mirror to cover blind spot on both sides for driving safety
- Crystal clear non-distortion image even in rainy, foggy days and at night
- 50~60f/s High frame rate real time image, low latency for higher safety
- WDR technology for anti glare and better visibility
Product Parameters
|
Monitor Parameters |
|||
|
Screen size |
5-inch touchscreen |
Resolution |
800x(RGB)x480 |
|
Resolution |
1280x720@25fps (Default);1920x1080@25fps |
Brightness |
1000cd/m² |
|
Video Inputs |
1CH,TVI,1920*1080@50fps |
Compression format |
H.265 |
|
Storage |
SD card |
Operating voltage |
+B 9~32V |
|
Stable operating temperature |
-20℃~+70℃ |
Storage temperature |
-30℃~+80℃ |
|
Power cord |
2m to socket (w/ insulation protection) |
Body line length |
25-30CM |
|
Camera Parameters |
|||
|
Image Sensor |
1/2.8”CMOS Image Sensor, Sony EXMOR |
Resolution |
1920(H)x1080(V) |
|
Image frame rate |
50fps |
FOV |
H= 91°，V=50° |
|
Lens structure |
6G+IR |
Wide dynamic range |
120dB |
|
Minimum illumination |
0.1 lux |
Operating voltage |
5.0±0.3V |
|
Stable Operating Temperature |
-30℃ to +70℃ |
Storage Temperature |
-40℃ to +85℃ |
|
Interface Spec |
4 pin aviation female plug |
|
|
