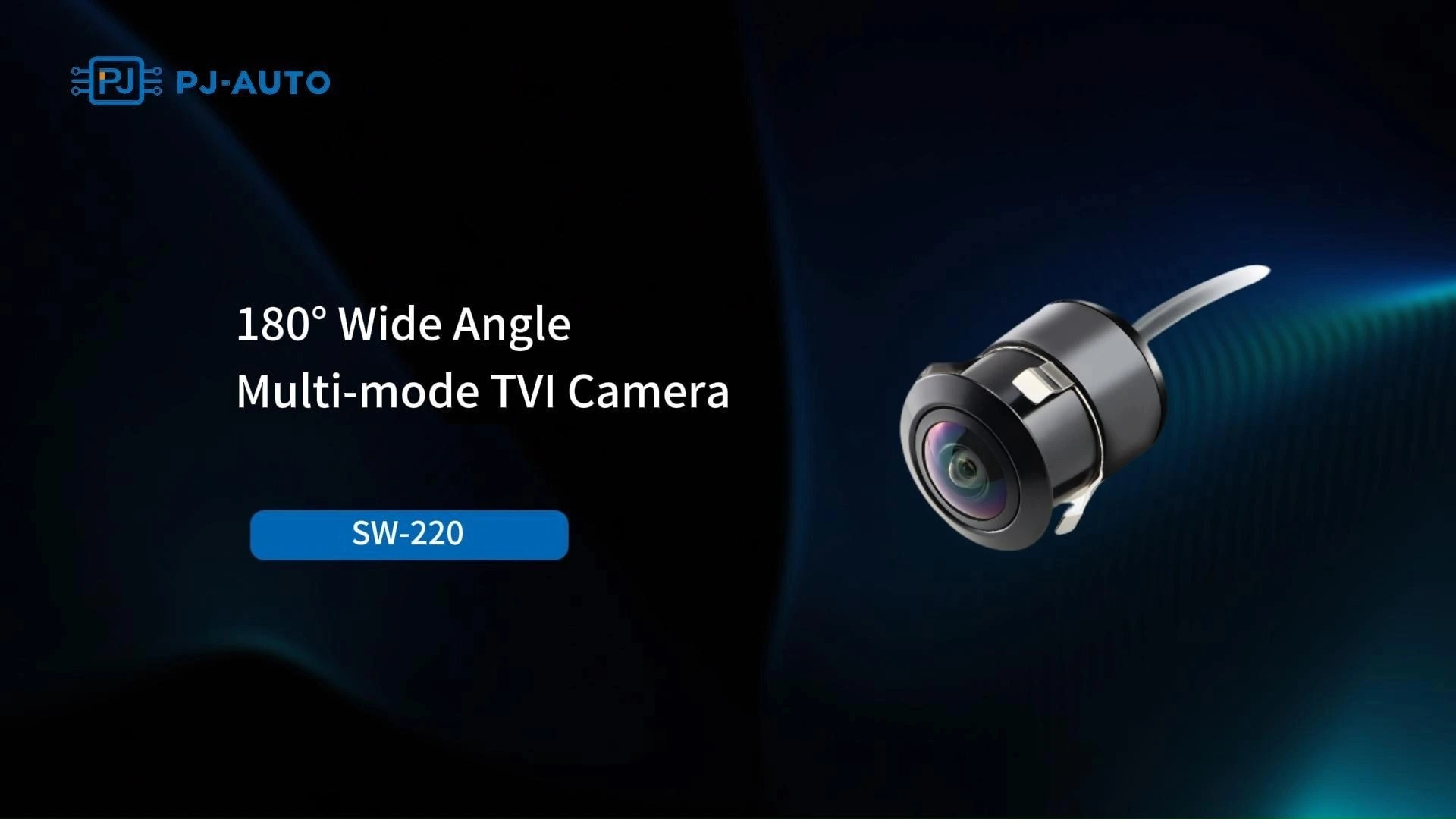

180°+Ultra Wide Angle HD TVI Multi-mode Camera 1

180°+Ultra Wide Angle HD TVI Multi-mode Camera 2

180°+Ultra Wide Angle HD TVI Multi-mode Camera 3

180°+Ultra Wide Angle HD TVI Multi-mode Camera 4

180°+Ultra Wide Angle HD TVI Multi-mode Camera 5

180°+Ultra Wide Angle HD TVI Multi-mode Camera 6

180°+Ultra Wide Angle HD TVI Multi-mode Camera 7

180°+Ultra Wide Angle HD TVI Multi-mode Camera

SW-220B Vehicle 180° Wide Angle Multi-Mode HD TVI Camera comes with a 1/4.2” CMOS sensor, supporting 1280×720 pixels and TVI 720P/25FPS signal, with a horizontal field of view of 191±3°. It allows front/rear view switching (default rear view) and has 6 screen modes (supports switching/deletion/restoration). With aluminum alloy housing + electrophoresis, IP68 protection (IPX9K to be verified), it works at -40~65℃ (operating temp) and -40~85℃ (storage temp), with strong weather resistance. Operating voltage DC 9-18V, max power consumption ≤1.3W, it’s a stable customized visual solution for vehicles.

Model:

SW-220

Inquiry

Write a Review

Features

1. HD transmission: Utilizes TVI digital signal transmission technology, supporting up to 60fps output. This significantly improves data transmission efficiency and system response speed, providing strong support for driving safety and vehicle functionality.

2. Ultra-wide 180° field of view: Real 180 degree FOV, w/ professional distortion correction to eliminate fisheye effect, dark corners, and blind spots for a true-to-life view.

3. Flexible display modes: Built-in multiple views to meet different installation needs.

4. TVI camera provides high-definition video quality, delivering clear and detailed images.

5. Real-time transmission: This product supports real-time video transmission with extremely low latency.

Product Parameters

Camera Parameters
Image Sensor	1/4.2"CMOS	Resolution	TVI 720P
Video frame rate	25 FPS	Effective pixels	1280(H) x720 (V)
Horizontal Angle	190°	Vertical Angle	110°
Waterproof grade	IP68	Operating voltage	9-18V
Stable Operating temperature	-40℃ to +65℃	Storage temperature	-40℃ to +85℃

Product Applications
