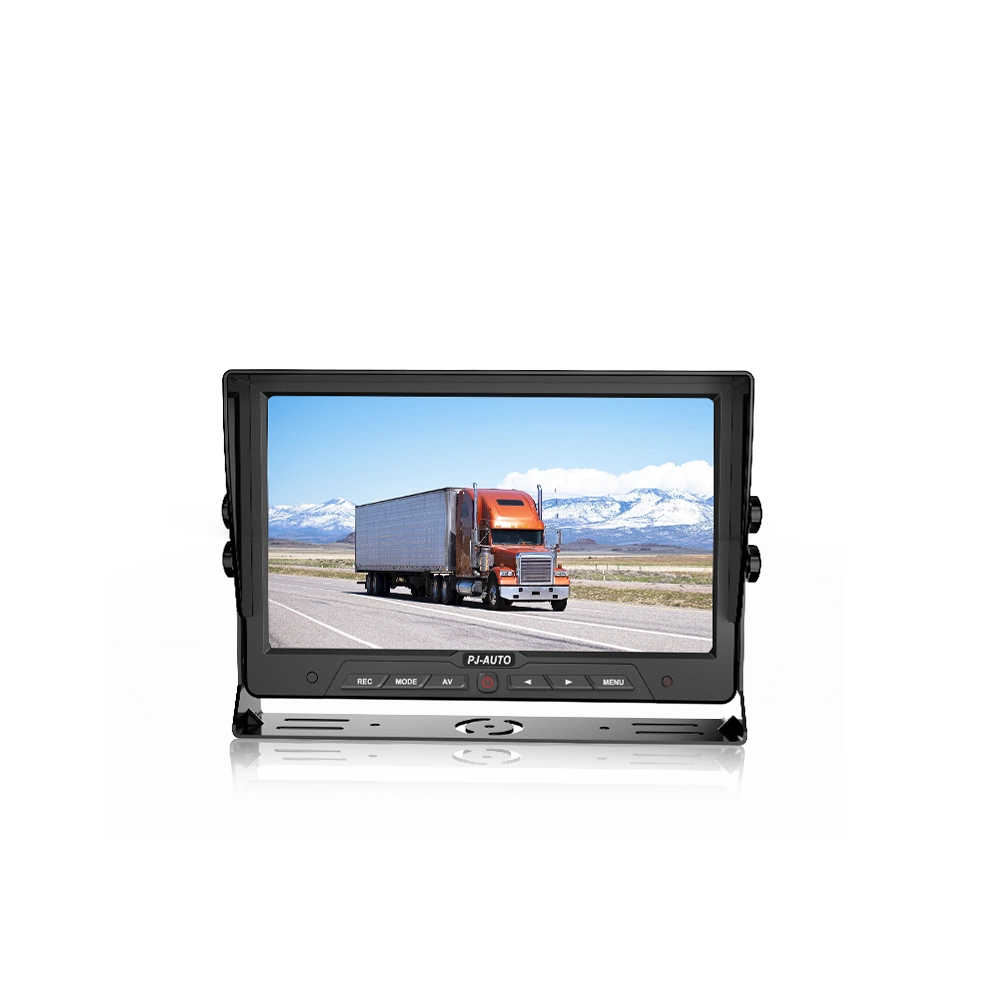

10.1-inch AHD 1080P Quad View Truck DVR Monitor
PJAUTO 10.1-inch hd rear view IPS monitor supports 4-ch video inputs and can be connected to multiple 1080P HD cameras simultaneously, enabling comprehensive monitoring of the vehicle's perimeter. Supporting 1024×600 resolution and a high brightness of 600cd/m², it displays images clearly even in bright sunlight. Its high contrast ratio of 800:1 ensures rich image detail and layering. It supports 4-channel synchronous recording function, supports SD card storage (up to 512GB), and can realize loop recording and event recording.
5.0
Model:
PJ-1012
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Features
- 10.1 inch lPS Monitor
- With 4 channel VGA/CVBS input
- Inbuilt light sensor for LCD brightness adjusting
- Utilizing VGA interface, supporting resolution up to 1024x600, ensuring clear and deli-cate images
- Equipped with intuitive physical buttons, users can easily navigate menus, adjust brightness, contrast settings, simplifying the usage process.
- DC12-36V wide voltage range, industriallevel PCB design with protection againstover-voltage,under-voltage,reverse polaritystatic and surge, etc.
Product Parameters
|
Model |
PJ-1012 |
|
Color Monitor Screen |
10.1-inch IPS |
|
Resolution |
1024*600 |
|
Video Input |
4channels |
|
Video Signal Input |
1080P/720P/VGA/CVBS |
|
OSD Menu Functions |
Respectively Sets The Mirror And Normal lmages Of The Picture, Delays The Time Of Reversing, Triggers Priority, And Supports Multiple Languages |
|
Video format |
PAL/NTSC |
|
Brightness |
600cd/m²(Support auto brightness) |
|
Contrast |
800:1 |
|
SD Storage |
8GB~256GB |
|
Compression Coding |
H.264/H.265 |
|
Connector |
4PIN Aviation |
|
Bracket |
U shape (multiple optional) |
|
Stable Working Temperature |
-30℃ to +65℃ |
|
Storage Temperature |
-40℃ to +85℃ |
|
Power Supply |
12-32V |
|
Body line length |
25-30CM |
|
Power cord |
2m to socket (w/ insulation protection) |
Product Applications
