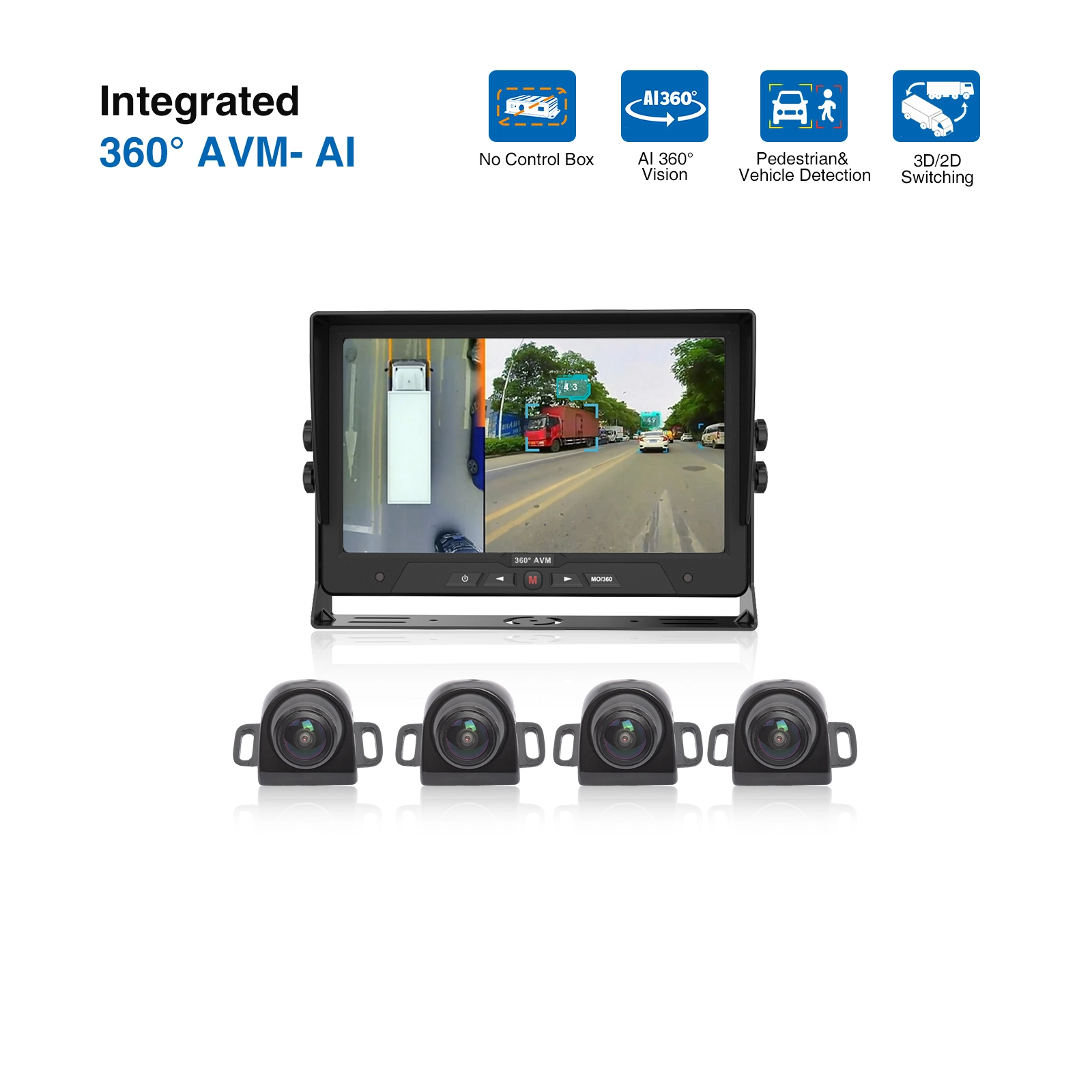

All in one AI 360° Around View Monitor System with 10.1-inch Screen
Features
- Integrated: 360° AI algorithms are integrated into the display, eliminating the need for a separate control box, saving space and facilitating deployment.
- Panoramic Vision: Integrates multiple camera feeds for an intuitive overview of the vehicle's surroundings.
- AI Active Warning: Intelligently identifies people and vehicles, providing real-time voice alerts for risks, transforming passive observation into proactive warnings.
- HD Touchscreen Control: Equipped with a 10.1-inch touchscreen with one-touch tiling and quick calibration, it's easy to use.
Product Parameters
|
Monitor Parameters |
|||
|
Screen |
10.1-inch touchscreen |
Brightness |
600cd/m² |
|
Brightness Adjustment |
Built-in light sensor, supports day and night brightness adjustment mode |
Resolution |
1024*600 |
|
Viewing Angle |
85/85/85/85 (Left/Right/Up/Down) |
Image Modes |
2D/3D free switching |
|
Video Format |
H264/H265 |
Video Input |
4CH |
|
Storage Capacity |
SD Card(16-512GB) |
Operating voltage |
DC12~36V |
|
Stable Operating temperature |
-30℃ to +70℃ |
Storage temperature |
-40℃ to +80℃ |
|
Camera Parameters |
|||
|
Image Sensor |
1/3 ‘’CMOS |
Resolution |
AHD 1080P |
|
Video frame rate |
25 FPS |
Effective pixels |
1024*600 |
|
Horizontal Angle |
210° |
Vertical Angle |
126° |
|
Waterproof grade |
IP68 |
Operating voltage |
8-16V |
|
Stable Operating temperature |
-30℃ to +70℃ |
Storage temperature |
-40℃ to +80℃ |
Product Applications
Applicable to: trucks, trailers, buses, school buses, RVs, forklifts, mining trucks, mixer trucks, excavators, ships, etc.
