All-in-one 360° Bird View Camera with 10.1 Screen for RV 1
All-in-one 360° Bird View Camera with 10.1 Screen for RV 1

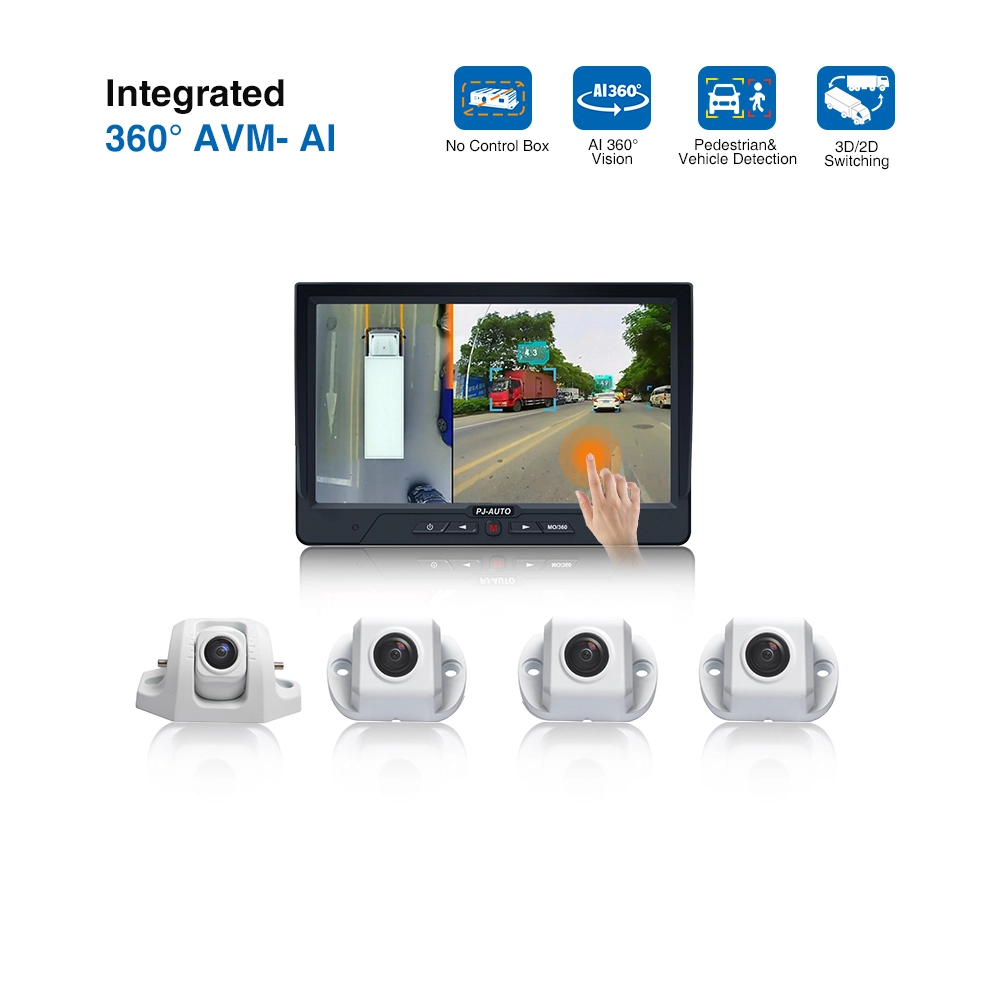

All-in-one 360° Bird View Camera with 10.1" Screen for RV

AI-360AVM-M9 is a highly integrated AI-powered visual active safety warning all-in-one device. It deeply integrates advanced 360-degree visual algorithms into the display, eliminating the need for an external control box and simplifying the installation process. The system uses cameras surrounding the vehicle to quickly synthesize and present a seamless bird's-eye view. Users can freely switch between 3D and 2D surround-view modes for intuitive insight into vehicle blind spots.

5.0
Model:
AI-360 AVM- M9
design customization

    oops...!

    no product data.

    Go to homepage

     Features

    • All-in- one Design: 360° AI algorithms are integrated into the display, eliminating the need for a separate control box, saving space and facilitating deployment.
    • HD Touchscreen Control: Equipped with a 10.1-inch touchscreen with one-touch tiling and quick calibration.
    • AI Active Warning: Intelligently identifies people and vehicles, providing real-time voice alerts for risks, transforming passive observation into proactive warnings.
    • Built-in Recording:Supports 16GB-512GB SD cards for direct recording without extra devices
    All-in-one 360° Bird View Camera with 10_1 Screen
    4 (37)

     Product Parameters

    Monitor Parameters

    Screen

     10.1-inch touchscreen

    Brightness

    600cd/m²

    Brightness Adjustment

    Built-in light sensor, supports day and night brightness adjustment mode

    Resolution

    1024*600

    Viewing Angle

    85/85/85/85 (Left/Right/Up/Down)

    Image Modes

    2D/3D free switching

    Video Format

    H264/H265

    Video Input

    4CH

    Storage Capacity

     SD Card(16-512GB)

    Operating voltage

    DC12~36V

    Stable Operating temperature

    -30℃ to +70℃

    Storage temperature

    -40℃ to +80℃

    Camera Parameters

    Image Sensor

     1/3 ‘’CMOS

    Resolution

    AHD 1080P

    Video frame rate

    25 FPS

    Effective pixels

    1024*600

    Horizontal Angle

    210°

    Vertical Angle

    126°

    Waterproof grade

    IP68

    Operating voltage

    8-16V

    Stable Operating temperature

     -30℃ to +70℃

    Storage temperature

    -40℃ to +80℃

     Product Applications

    Applicable to: RV,trucks, trailers, buses, school buses, forklifts, mining trucks, mixer trucks, excavators, ships, etc.
