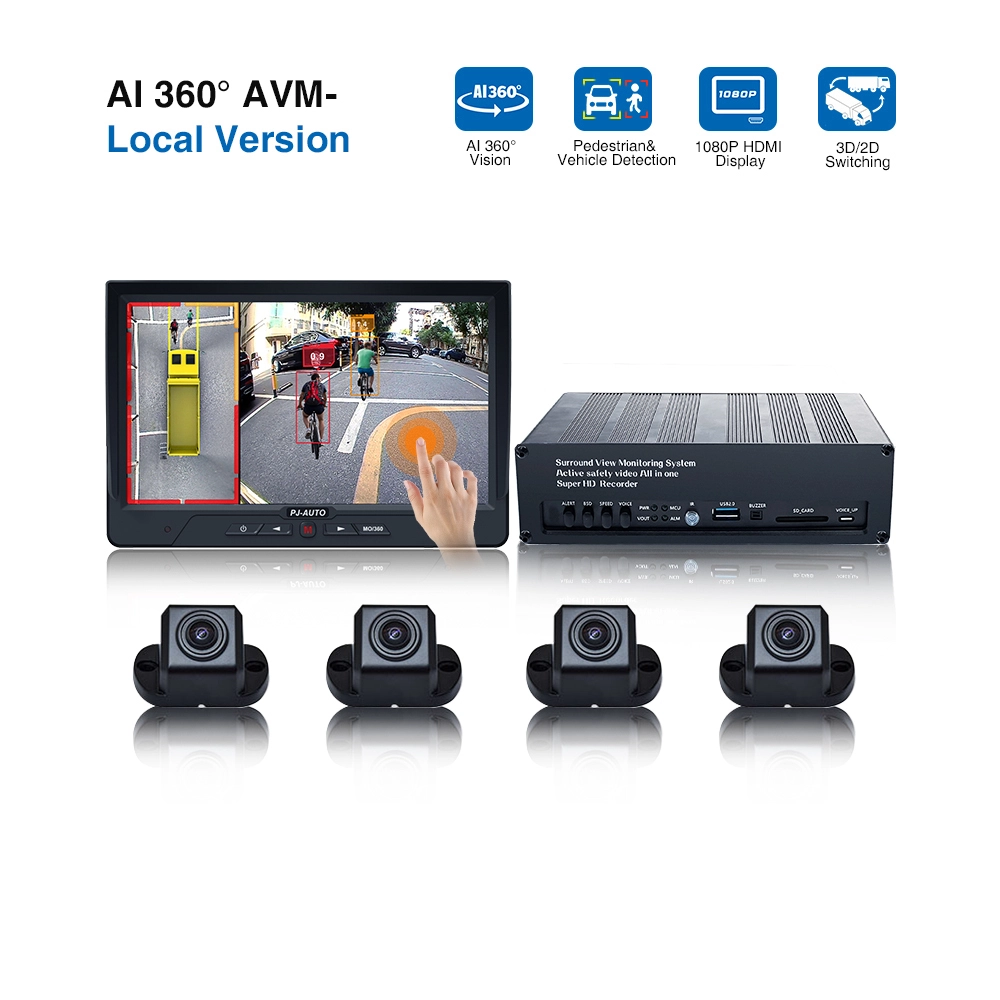

AI 360° Bird View Camera System with 10.1 Screen for Truck
This product is a 360-degree active safety warning system based on AI vision algorithms. Cameras installed around the vehicle synthesize panoramic images and stitch them together to create a bird's-eye view, providing a very intuitive view of the vehicle's surroundings. Powered by built-in AI algorithms, it identifies people and vehicles around the vehicle and proactively warns the driver via real-time voice announcements inside the vehicle. Combined with an optional radar detection system, it significantly improves driving safety. It is specifically designed for trucks, buses, emergency vehicles, and other modes of transportation.
Features
- Designed specifically for large vehicles, it provides true 360-degree seamless monitoring with no blind spots, ensuring driving safety.
- Supports AI blind spot detection, interior and exterior audio-visual alarms, and voice prompts, offering a comprehensive active driving safety assistance system.
- The 3D/2D switching view makes it easier and safer for drivers to use.
- It supports multiple video outputs and radar detection, providing comprehensive monitoring and assistance functions.
Product Parameters
|
Monitor Parameters |
|||
|
Screen |
10.1-inch touchscreen |
Brightness |
500cd/m² |
|
Brightness Adjustment |
Built-in light sensor, supports day and night brightness adjustment mode |
Resolution |
1024*600 |
|
Viewing Angle |
85/85/85/85 (Left/Right/Up/Down) |
Image Modes |
2D/3D free switching |
|
Video Format |
H264/H265 |
Video output |
HDMI/VGA/AHD/CVBS |
|
Storage Capacity |
SD Card(16-512GB) |
Operating voltage |
DC12~36V |
|
Stable Operating temperature |
-30℃ to +70℃ |
Storage temperature |
-40℃ to +80℃ |
|
Camera Parameters |
|||
|
Image Sensor |
1/3 ‘’CMOS |
Resolution |
AHD 1080P |
|
Video frame rate |
25 FPS |
Effective pixels |
1024*600 |
|
Horizontal Angle |
210° |
Vertical Angle |
126° |
|
Waterproof grade |
IP68 |
Operating voltage |
8-16V |
|
Stable Operating temperature |
-30℃ to +70℃ |
Storage temperature |
-40℃ to +80℃ |
Product Applications
Applicable to: trucks, trailers, buses, school buses, RVs, forklifts, mining trucks, mixer trucks, excavators, ships, etc.
