Leading Vehicle Camera Manufacturer & 360° AVM System Supplier - PJ-AUTO.

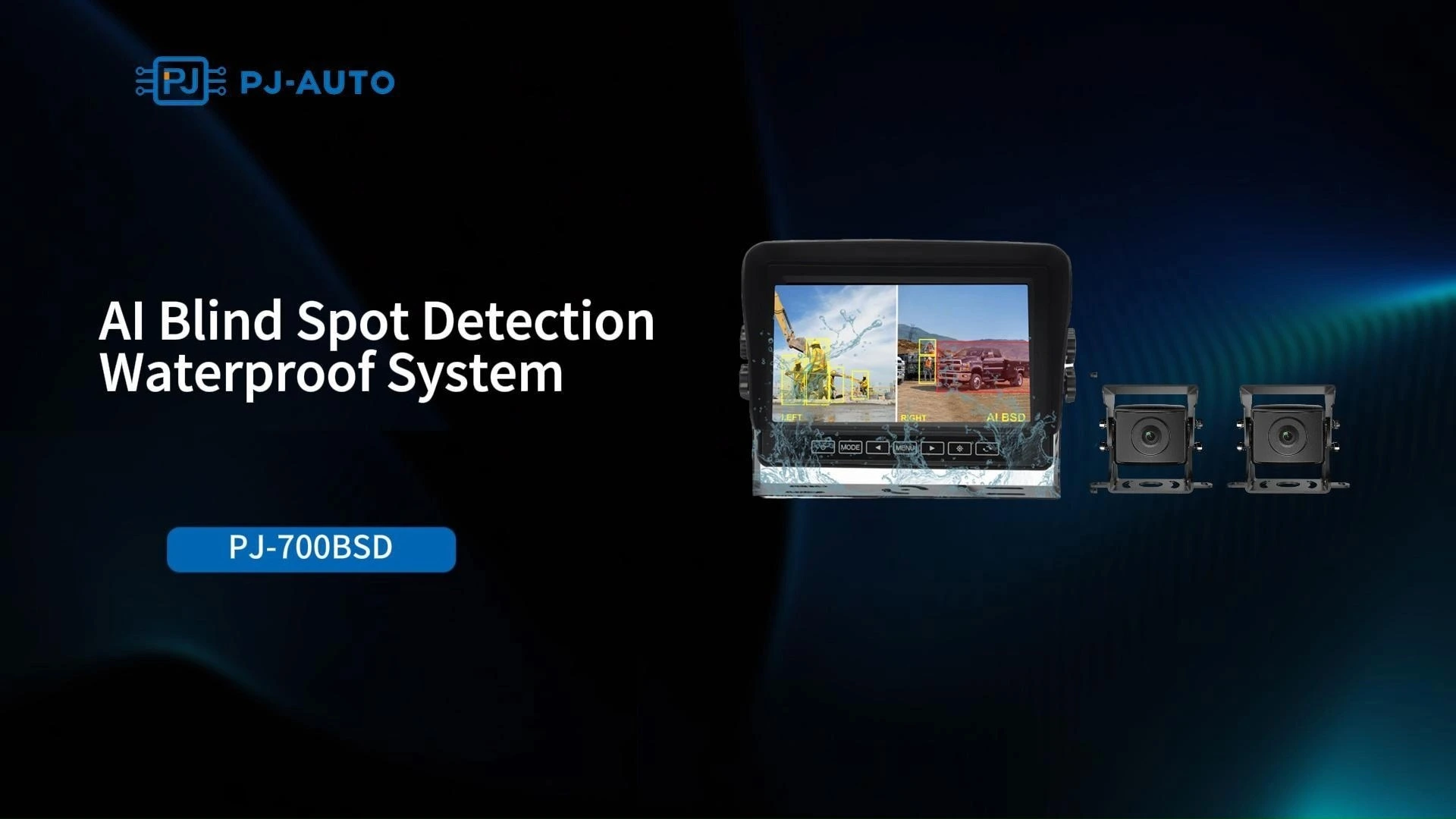

The AI blind spot monitoring system uses advanced computer vision and deep learning technology to monitor the environment around trucks in real time. By installing cameras on vehicles to capture images of the surroundings, the system analyzes these images using AI algorithms to identify potential obstacles and pedestrians.
Features
Product Parameters
Monitor |
|
Size |
7inch IPS |
Resolution |
AHD 1080P |
Video Inputs |
Supports 2-4CH video input |
Video Signal Input |
1080P/720P/CVBS mixed connection |
Video format |
PAL/NTSC (AUTO) |
Brightness |
600cd/m² |
Contrast |
800:1 |
Surge and Load Dump Protection |
ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms) |
Stable Operating Temperature |
-30℃ to +65℃ |
Storage Temperature |
-40℃ to +85℃ |
Operating Voltage |
DC12-32V |
Waterproof |
IP 68 |
Bracket |
U shape (multiple optional) |
Power cord |
2m to socket (w/ insulation protection) |
Body line length |
25-30CM |
Camera |
|
Model |
PJ-213B |
Image Sensor |
1/2.9 Color CMOS |
Effective Pixels |
1288*968 |
Resolution |
1080P |
Viewing Angle |
120° |
Distance |
15meters+ |
Video Signal |
AHD |
Frame Rat |
25fps/30fps |
Waterproof |
IP69k |
Operating Voltage |
DC12V |
Housing Material |
Aluminum alloy |
Waterproof |
IP69K |
Stable Operating Temperature |
-30℃ to +65℃ |
Storage Temperature |
-40℃ to +85℃ |
Interface Spec |
4 pin aviation female plug |
Product Applications
