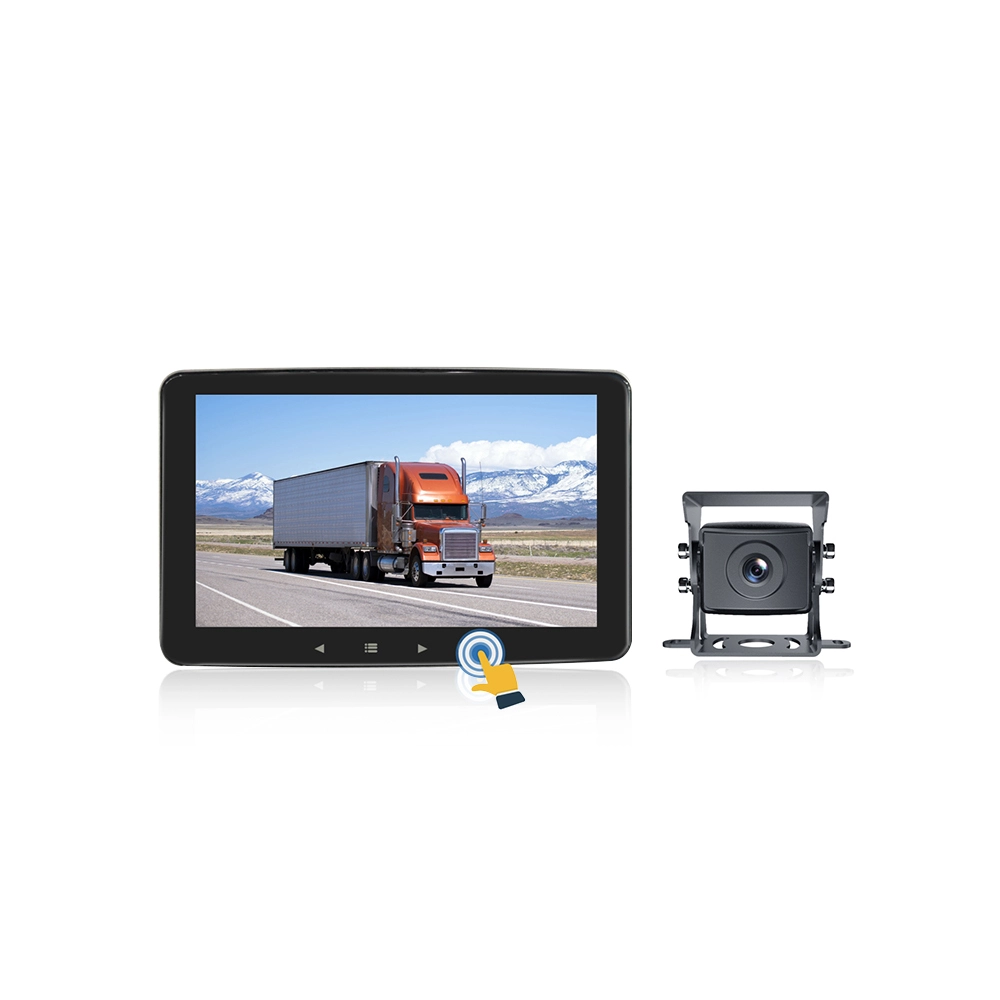

7-inch HD Rear View Camera Monitor System with Table-designed
This new tablet-designed 7-inch monitor system is a reliable solution for enhancing driving safety. Featuring a 1024 x 600 high-resolution 7-inch touchscreen, it can simultaneously display images of two blind spots, providing a clear and wide field of view and effectively eliminating blind spots. Its wide 12-24V input voltage range, along with comprehensive circuit protection against overvoltage, reverse polarity, and surge, ensures stable operation in various harsh vehicle environments. Combined with intuitive touch button controls, it provides drivers with a reliable and easy-to-use integrated blind spot monitoring system.
Features
1. New tablet-designed 7" monitor camera kit
2. 1024*600 high resolution TFT screen for clear & broader view
3. Touch button control
4. With a wide12-24V range and protection against over-voltage, reverse polarity, anti-surges, for reliable operation in tough conditions.
Product Parameters
|
Monitor Parameters |
|||
|
Screen |
7-inch TFT screen |
Resolution |
1024(RGB)x600 |
|
Resolution |
1920*1080 |
Brightness |
500cd/m²(Support auto brightness) |
|
Video input |
2CH,RCA connector |
Key backlight |
White |
|
Video signal |
AHD1080P/30FPS |
Contrast |
800:1 |
|
Power consumption |
<4W |
Operating voltage |
12~24v |
|
Stable operating temperature |
-20℃~+65℃ |
Storage temperature |
-30℃~+70℃ |
|
Body line length |
20-30cm |
Power cord |
2m to socket (w/ Insulation protection) |
|
Camera Parameters |
|||
|
Image Sensor |
1/2.9”CMOS |
Resolution |
AHD 1080P |
|
Video frame rate |
30FPS |
FOV |
152°(H)，92°(V) |
|
Video signal |
AHD |
Wide dynamic range |
68.1dB |
|
Waterproof |
IP68 |
Operating voltage |
DC12-24V |
|
Stable operating temperature |
-40°C to +65°C |
Storage temperature |
-40°C to +85°C |
Product Applications
Applicable to: trucks, trailers, buses, school buses, RVs, forklifts, mining trucks, mixer trucks, excavators, ships, etc.
