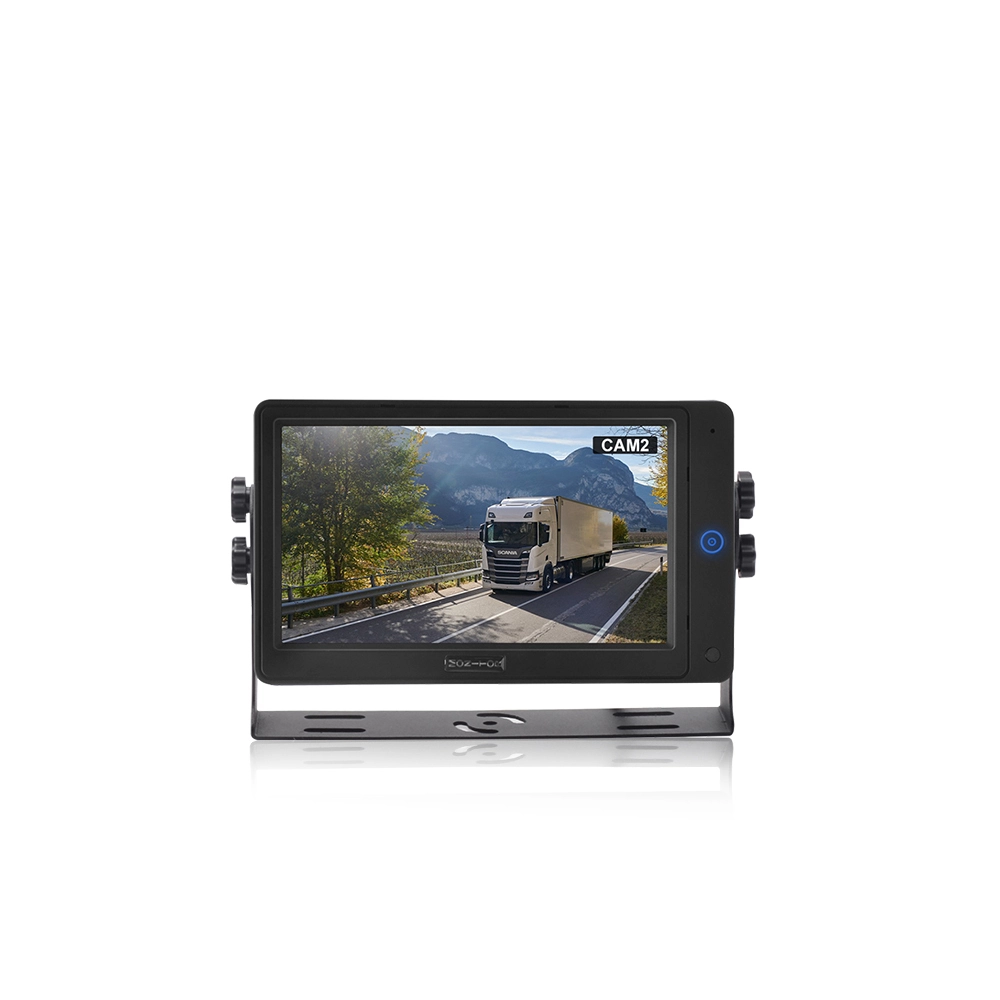

7-Inch AHD Rear View Single backlit Button Monitor for Truck
1080P AHD Monitor
The PJAUTO 7-inch AHD rearview monitor supports a mix of cameras in various formats. A removable sunshade effectively prevents glare, and an intelligent night mode automatically dims the screen brightness to minimize glare and ensure driving safety. Backlit single-touch buttons allow for easy operation even in dimly lit environments. A variety of brackets are available to meet diverse mounting requirements and support a high degree of customization. Up to three video/audio/trigger inputs can be customized to meet complex system integration needs.
5.0
Model:
PJ-715HD
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Features
- Full compatibility with AHD 720P/1080P & CVBS(NTSC/PAL)
- Support mixing connection of cameras of different formats
- High brightness and high resolution display
- Auto dim for night mode
- Fast boot up and fast switching by button or trigger(<2 seconds)
- DC 12-36V wide voltage range,industrial level PCB design with protection against over-voltage,under-voltage,reverse polarity,static and surge,etc.
- IPS panel for wide & bright screen view
- Detachable sunshade,single touch button with backlight
Product Parameters
|
Model |
PJ-715HD |
|
Color Monitor Screen |
7-inch IPS |
|
Resolution |
1024*600 |
|
Video Input |
3channels |
|
Video Signal Input |
1080P/720P/CVBS |
|
OSD Menu Functions |
Respectively Sets The Mirror And Normal lmages Of The Picture, Delays The Time Of Reversing, Triggers Priority, And Supports Multiple Languages |
|
Video format |
PAL/NTSC |
|
Brightness |
600cd/m²(Support auto brightness) |
|
Contrast |
800:1 |
|
Connector |
4PIN Aviation |
|
Bracket |
U shape (multiple optional) |
|
Stable Working Temperature |
-30℃ to +65℃ |
|
Storage Temperature |
-40℃ to +85℃ |
|
Power Supply |
12-32V |
|
Body line length |
25-30CM |
|
Power cord |
2m to socket (w/ insulation protection) |
Product Applications
Application:Trucks, forklifts, excavators, cranes, tractors, harvesters, concrete mixers ,etc.
