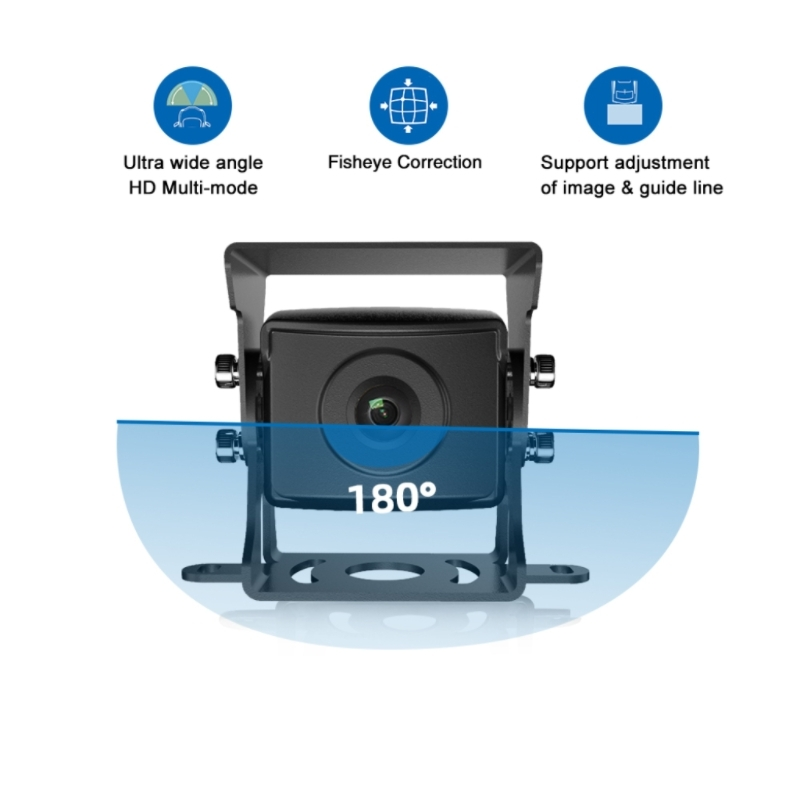

180° AHD Wide Angle Multi View Camera
PJAUTO 180° wide-angle multi-view camera revolutionizes the field of view by integrating multiple viewing modes. Users can switch between 180° ultra-wide-angle views, precise bird's-eye views, and specific angle views with a single click. Equipped with professional-grade fisheye correction technology, it produces natural, realistic HD images. Furthermore, it supports support image screen adjustment, allowing users to customize the image effects according to their needs, making the field of view guidance more precise and intuitive. Adhering to the concept of rugged and durable design, the camera is waterproof to IP69K, capable of long-term stable operation in various harsh environments.
Features
1. Ultra-Wide View180°, Professional Corrected:Real180 degree FOV, w/ professional distortion correction to eliminate fisheye effect, dark corners, and blind spots for a true-to-life view.
2. Flexible Display Modes:Multiple built-in views for different installation requirements.
3. Precise On-Screen Adjustments:Use an external keyboard to finely adjust the image position and guidelines.
4. IP69K Waterproof & Durable:Fully protected against high-pressure water, steam cleaning, and dust; reliable in tough conditions.
Product Parameters
|
Camera Parameters |
|||
|
Image Sensor |
1/3 ‘’CMOS |
Resolution |
AHD 1080P |
|
Video frame rate |
25 FPS |
Effective pixels |
1024*600 |
|
View Angle |
180° |
Waterproof grade |
IP68 |
|
Operating voltage |
8-16V |
Storage temperature |
-40℃ to +80℃ |
|
Stable Operating temperature |
-30℃ to +70℃ |
|
|
Product Applications
Applicable to: Car,RV,Pickup truck, SUV,etc.
The radar features an industrial-grade IP69K protection rating and is equipped with a 77~78GHz high-frequency millimeter-wave sensor with anti-vibration and anti-acoustic interference capabilities. It performs reliably in harsh conditions including rain, snow, fog, and dust, maintaining high-penetration detection even when covered in mud or dirt. Working in tandem with the main control unit and in-cab digital monitor, it delivers clear visual and audible dual alerts, providing all-weather, reliable safety protection for engineer
