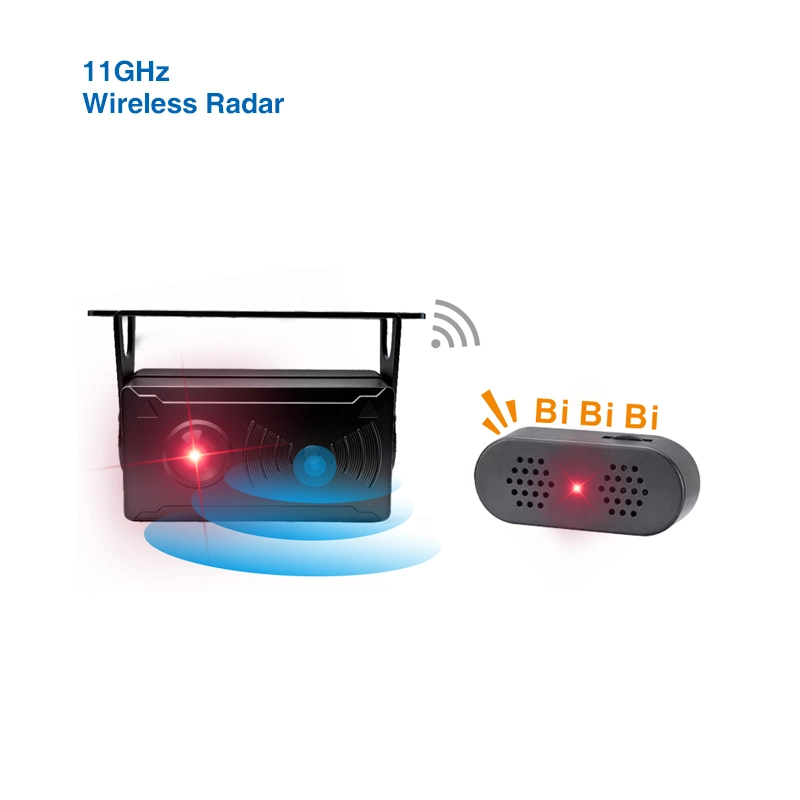

11GHz Wireless Blind Spot Detection Radar System with Buzzer Alarm
11GHz Wireless Reverse Radar Sensor With 170° Wide Angle & 3 M Detection Range
This High-Performance 11GHz Wireless Reversing Radar is Specifically engineered for heavy-duty trucks. Utilizing advanced 11GHz microwave technology, it features a 170° ultra-wide field of view and 3-meter precision detection. The wire-free installation saves significant time, while the ruggedized design ensures reliability in harsh environments such as mud, rain, snow, and dust. It is a powerful solution for enhancing heavy-duty truck safety.
5.0
Model:
PJ-196RD
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Features
- 170° Ultra-Wide Detection Coverage：The system features a horizontal detection angle of nearly 170°, covering almost all rear blind spots for large vehicles. Combined with a precise 3-meter detection range (0.01m resolution), it promptly detects pedestrians, obstacles, or small vehicles behind the truck, significantly reducing the risk of reversing accidents.
- 11 GHz Microwave Technology: Utilizing high-frequency 11 GHz microwave radar, this system offers exceptional penetration power. Unlike traditional ultrasonic sensors, it remains unaffected by rain, snow, dense fog, or ambient mechanical noise. Even if the sensor surface is covered with mud or dust, it maintains stable detection performance, ensuring the safety of heavy vehicles in extreme operating environments.
- Rapid Wireless Installation (Cable-Free): the system requires no complex wiring between the radar module and the in-cab buzzer. This significantly shortens installation time and reduces labor costs. It also allows for flexible mounting positions across various vehicle types, such as trailers and mining trucks, making it an efficient choice for fleet safety upgrades.
- Rugged Industrial-Grade Reliability: Engineered for the harsh operating conditions of commercial vehicles, the system boasts outstanding vibration resistance and superior waterproof and dustproof performance
Product Parameters
|
Radar Specifications |
|||
|
Operating Frequency |
9.9 ~ 10.5 GHz |
Detection Distance |
Up to 3 meters |
|
Detection Angle (H/V) |
Horizontal 165° / Vertical 105° |
Accuracy |
< 0.1 meters |
|
Sensitivity |
-118 dBm @ FSK |
Effective Range |
20 meters |
|
Wireless & Alarm Specifications |
|||
|
Wireless Frequency |
Sub-1GHz (380 MHz - 440 MHz) |
Transmission Range |
20 meters (Open area) |
|
Output Power |
+12 dBm Max |
Alarm Sound Level |
85 dB (@ 30cm) |
|
Operating Voltage |
12-28V |
Operating Temp |
-25℃~+75℃ |
Product Applications
Applicable to: trucks, trailers, buses, RVs, forklifts, mining trucks, mixer trucks, excavators, etc.
