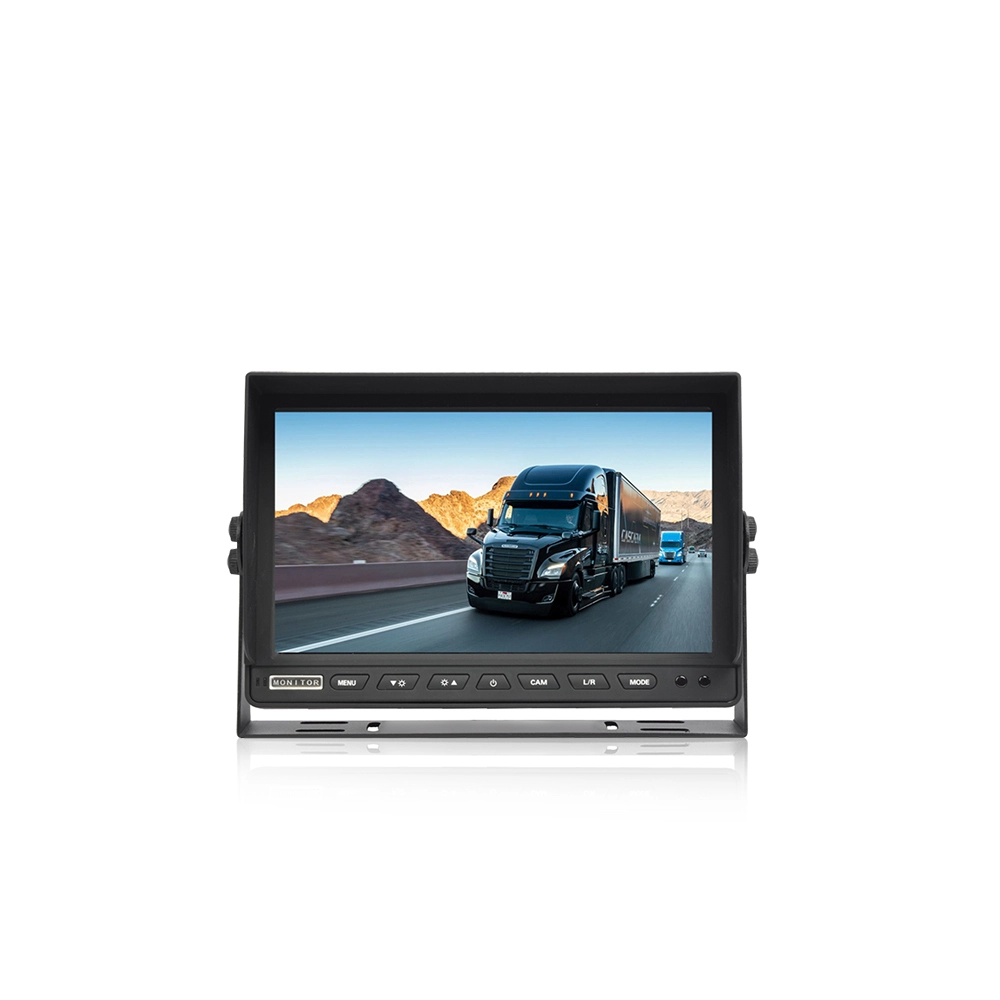

10.1-inch Quad View AHD Heavy Duty Monitor
Features
- Full compatibility with AHD 720P/1080P & CVBS (NTSC/PAL)
- Support mixing connection of cameras of different formats
- High brightness and high resolution display
- Fast boot up and fast switching by button or trigger
- DC12-36V wide voltage range, industrial level PCB design with protection against over-voltage, under-voltage, reverse polarity,static and surge, etc.
- 4-pin aviation connector with waterproof cover
- Various brackets optional
- Up to 3-CH video/audio/trigger inputs customizable for this series.
- 1-3CH video inputs optional
- Rubber finish, Detachable sunshade
- 7 x mechanical buttons with backlight
- Auto dim for night mode
- OSD menu for setting of language, mirror image, parking grid on/off, etc.
- Embedded mounting frame optiona
Product Parameters
|
Model |
PJ-1010HD |
|
Color Monitor Screen |
10.1-inch IPS |
|
Resolution |
1024*600 |
|
Video Input |
3channels |
|
Video Signal Input |
1080P/720P/CVBS mixed connection |
|
OSD Menu Functions |
Respectively Sets The Mirror And Normal lmages Of The Picture, Delays The Time Of Reversing, Triggers Priority, And Supports Multiple Languages |
|
Video format |
PAL/NTSC |
|
Brightness |
600cd/m² |
|
Contrast |
800:1 |
|
Connector |
4PIN Aviation |
|
Bracket |
U shape (multiple optional) |
|
Stable Working Temperature |
-30℃ to +65℃ |
|
Storage Temperature |
-40℃ to +85℃ |
|
Power Supply |
12-36V |
|
Body line length |
25-30CM |
|
Power cord |
2m to socket (w/ insulation protection) |
Product Applications
Suitable for trucks, excavators, mining trucks, agricultural vehicles, mixer trucks, tank trucks
