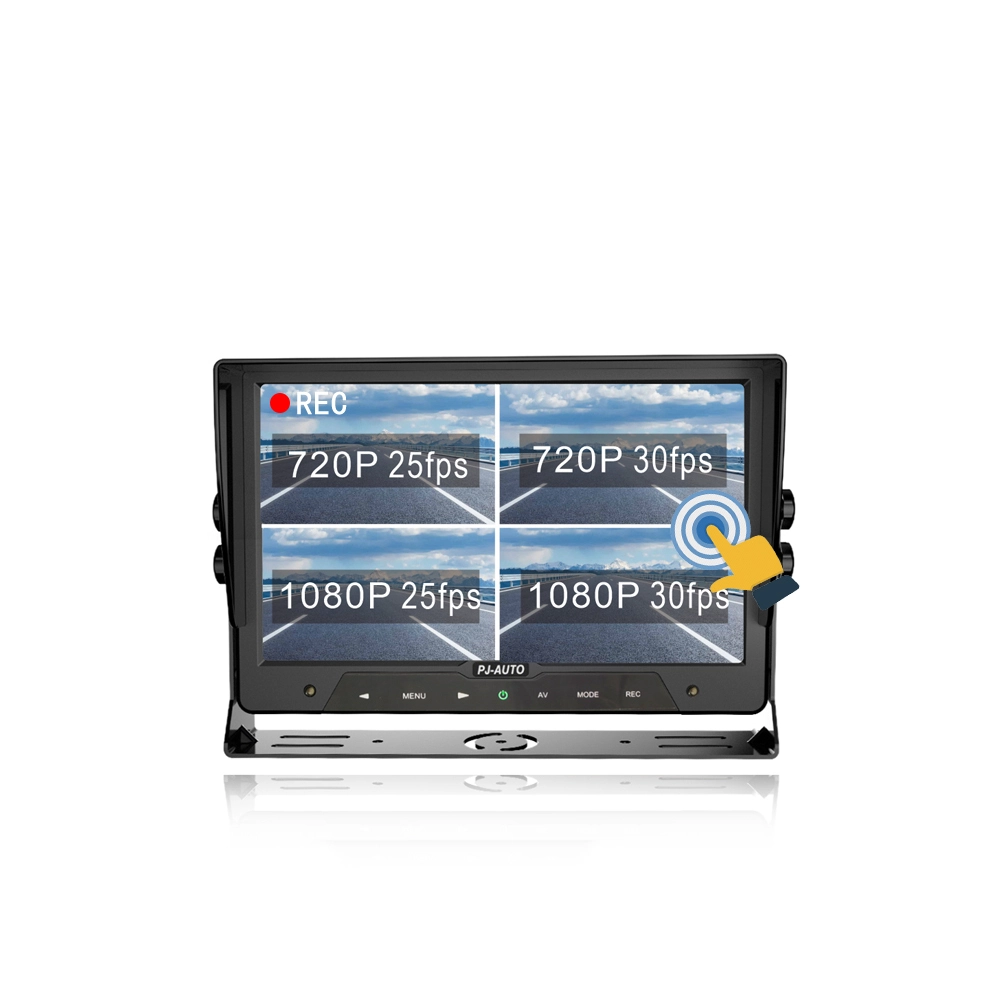

10.1-inch DVR Monitor Supports mixed connection of multiple standards
PJAUTO 10.1-inch touchscreen DVR monitor is a comprehensive and adaptable professional surveillance solution. It supports multiple signal input formats including CVBS, AHD, TVI, and IPC, offering strong compatibility. Its flexible multi-view display mode can simultaneously display 1 to 4 channels of 720P or 1080P high-definition camera footage, achieving comprehensive monitoring without blind spots. It features built-in DVR recording functionality and supports SD card storage up to 256GB to meet local recording needs. The product has a wide voltage input (12-24V), integrated G-sensor functionality, and is equipped with multiple safety mechanisms such as overvoltage protection, reverse connection protection, and surge protection, ensuring stable and reliable operation even in harsh environments.
Features
- 10.1-inch Touchscreen
- Integrated All-in-one DVR Monitor,No control box
- Multi-Signal Compatibility: Seamlessly connects to various video sources (CVBS,720P,1080P)
- Image Uniformity: Intelligently processes input for consistent image quality
- Built in DVR recording, support SD card storage up to 1TB
- G-Sensor Emergency Lock: Auto-locks & protects footage on impact/collision to preserve critical evidence.
- DC12-36V wide voltage range, industriallevel PCB design with protection againstover-voltage,under-voltage,reverse polaritystatic and surge, etc.
Product Parameters
|
Model |
PJ-1014DV |
|
Color Monitor Screen |
10.1-inch IPS Touchscreen |
|
Resolution |
1080P |
|
Video Input |
4channels |
|
Video Signal Input |
1080P/720P/CVBS |
|
OSD Menu Functions |
Respectively Sets The Mirror And Normal lmages Of The Picture, Delays The Time Of Reversing, Triggers Priority, And Supports Multiple Languages |
|
Video format |
PAL/NTSC |
|
Brightness |
600cd/m²(Support auto brightness) |
|
Contrast |
800:1 |
|
SD Storage |
1TB |
|
Compression Coding |
H.264/H.265 |
|
Connector |
4PIN Aviation |
|
Bracket |
U shape (multiple optional) |
|
Stable Working Temperature |
-30℃ to +65℃ |
|
Storage Temperature |
-40℃ to +85℃ |
|
Power Supply |
12-32V |
|
Body line length |
25-30CM |
|
Power cord |
2m to socket (w/ insulation protection) |
Product Applications
The radar features an industrial-grade IP69K protection rating and is equipped with a 77~78GHz high-frequency millimeter-wave sensor with anti-vibration and anti-acoustic interference capabilities. It performs reliably in harsh conditions including rain, snow, fog, and dust, maintaining high-penetration detection even when covered in mud or dirt. Working in tandem with the main control unit and in-cab digital monitor, it delivers clear visual and audible dual alerts, providing all-weather, reliable safety protection for engineer
