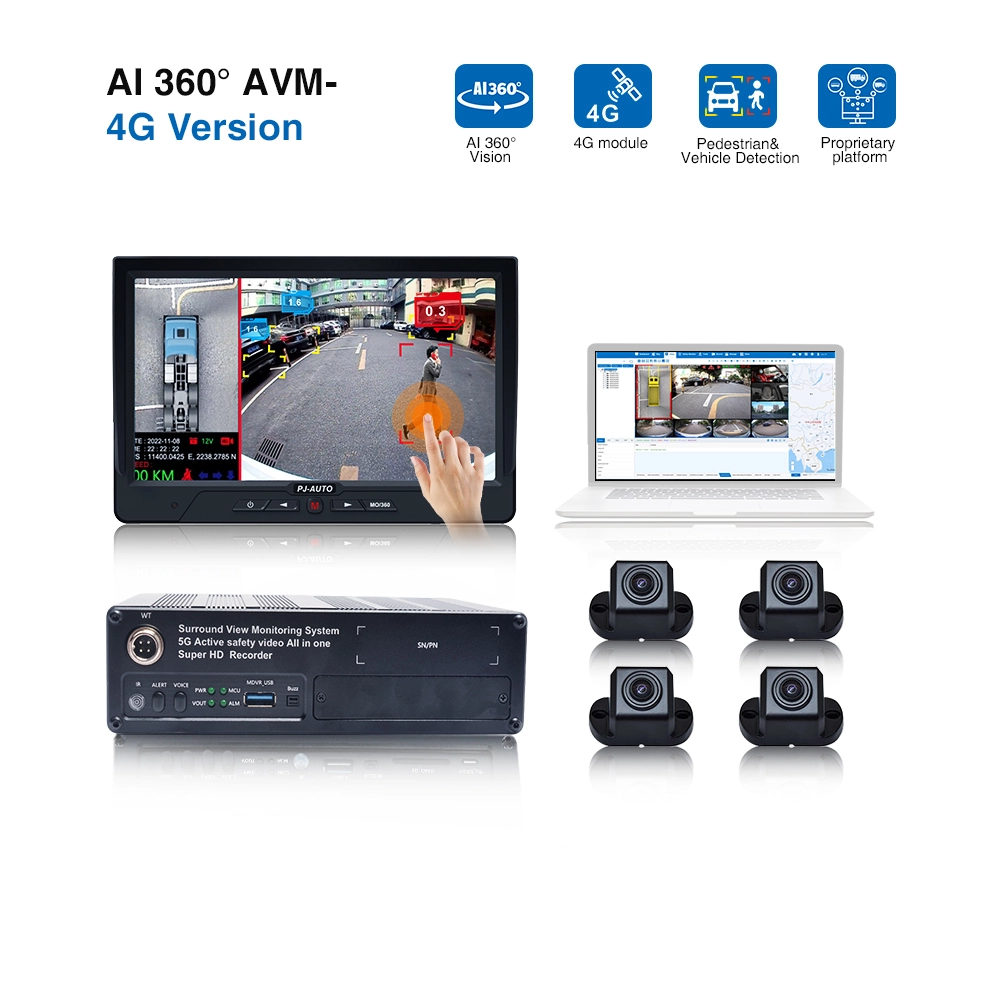

10.1-inch AI 360° AVM System with 4G Module
PJAUTO AI-360AVM-N4 is an active safety driving assistance system developed for large vehicles. The product integrates Beidou positioning, 4G video transmission, CAN communication, blind spot (BSD) + DMS fatigue driving + behavior detection) + ADSA lane departure + sound and light alarm and other sensors. Through its own algorithm, it combines images (passive safety) + sensors (active safety) to achieve 360-degree active driving safety assistance for large vehicles without blind spots.
Features
- Integrates 4-camera seamless stitching
- Al real-time pedestrian/vehicle detection (voice alerts)
- 4G remote monitoring/cloud storage(CMSV6/V7)
- 1080P High Resolution HDMl display
- Optional 16-radar blind spot monitoring
Product Parameters
| 360°AVM System Parameters | |||
|
Versio |
4G version,4-CH AI 360°AVM |
Video input |
4-6Channel |
|
Mounting Vehicle Length |
Up to 19M |
Extended Features |
ADAS,DMS,BSD |
|
Power Supply |
12-36V |
Video input |
2CH(CVBS+HDMI/VGA) |
|
Monitor Parameters |
|||
|
Screen |
10.1-inch screen HDMI |
Brightness |
600cd/m² |
|
Brightness Adjustment |
Built-in light sensor, supports day and night brightness adjustment mode |
Resolution |
1024*600 |
|
Video Input |
2CH(CVBS+HDMI/VGA) |
Image Modes |
2D/3D free switching |
|
Video Format |
H265(Equivalent） |
Video Input |
4-6CH |
|
Storage Capacity |
SD(8-256GB)/support SSD up to2TB |
Operating voltage |
DC12~36V |
|
Stable Operating temperature |
-30℃ to +65℃ |
Storage temperature |
-40℃ to +80℃ |
|
Camera Parameters |
|||
|
Image Sensor |
1/3 ‘’CMOS |
Resolution |
AHD 1080P |
|
Video frame rate |
25 FPS |
Effective pixels |
1024*600 |
|
Power Consumption |
0.5-1W |
View Angle |
210°（H）126°（V） |
|
Waterproof grade |
IP68 |
Operating voltage |
8-16V |
|
Stable Operating temperature |
-30℃ to +65℃ |
Storage temperature |
-40℃ to +80℃ |
Product Applications
Applicable to: trucks, trailers, buses, school buses, RVs, forklifts, mining trucks, mixer trucks, excavators, ships, etc.
The radar features an industrial-grade IP69K protection rating and is equipped with a 77~78GHz high-frequency millimeter-wave sensor with anti-vibration and anti-acoustic interference capabilities. It performs reliably in harsh conditions including rain, snow, fog, and dust, maintaining high-penetration detection even when covered in mud or dirt. Working in tandem with the main control unit and in-cab digital monitor, it delivers clear visual and audible dual alerts, providing all-weather, reliable safety protection for engineer
